CNC Machining for Robotics and Automation
Motion-critical housings, mounts, end effectors, fixtures, and automation components from prototype through repeat production.
Reviewed by PiPrecision Engineering Team on August 5, 2026
Overview
Machining for Motion-Critical Interfaces
Robotics and automation parts are reviewed around assembly relationships and repeat motion—not a single isolated tolerance.
- Bearing seats, gearbox interfaces, actuator housings, servo mounts, shafts, and alignment features.
- End-of-arm tooling plates, gripper fingers, tool changers, sensor brackets, and vision-system mounts.
- Datum chains, coaxial and perpendicular interfaces, preload features, and tolerance stack-ups across assemblies.
- Lightweight structures, thin walls, cable routing, access for assembly, and replaceable wear components.
From Prototype to Controlled Repeat Production
The production plan is established from the drawing, quantity, CTQ features, process risk, and required evidence.
- DFM and tolerance review before process release.
- First-article approval with agreed dimensional and functional checks.
- Control plan and inspection frequency for critical-to-quality features.
- Fixture, tool-life, nonconformance, and revision control as volume increases.
- Project-specific yield, defect, volume, and delivery figures are reported in the linked case studies and are not universal guarantees.
Documented Project Examples
Results below are specific to the linked project, part, volume, process, and inspection scope. They are not universal capability guarantees.
Engineering Resources
Use these guides to prepare drawings, tolerances, finish requirements, and inspection expectations before RFQ.
Capabilities
These are general, drawing-reviewed capabilities. The quotation confirms the applicable process, tolerance, inspection method, evidence, and any outside operation for the specific part.
Robotic arm segments and joints, end-effector components and tooling, motion control housings and mounts.
Cpk ≥ 1.67, SPC on critical dimensions, automated inspection
Bearing housings with H7 tolerances, linear motion guides and rails.
Surface finishes Ra 0.8 μm, precise fits
Rapid prototyping for design validation, bridge tooling for market introduction, full-scale production.
2-week prototypes, seamless scale-up
Aluminum for lightweight structures, steel for strength and wear, engineering plastics for specific properties.
Material optimization for application requirements
Anodizing for aluminum, heat treatment for steel, coatings for wear resistance.
Coordinated with certified suppliers
Published dimensional and performance capabilities are indicative and subject to drawing review.
Current Certifications and Development Roadmap
Current certificates are listed first and link to the certificate on file. Targeted and planned standards are development goals and do not represent current certification.
| Certification | Status | Scope |
|---|---|---|
| ISO 9001:2015View certificate | Certified | General Quality Management |
| ISO 14001:2015View certificate | Certified | Environmental Management |
| Development roadmap — PiPrecision is not currently certified to the standards below | ||
| ISO 45001 | Planned — not certified | Occupational Health & Safety |
| IATF 16949 | Planned — not certified | Automotive Quality (for auto applications) |
Quality Processes
- Statistical Process Control (SPC) on all critical features
- Poka-yoke (error-proofing) at key operations
- First-piece inspection for every production run
- In-process inspection with automated gauging

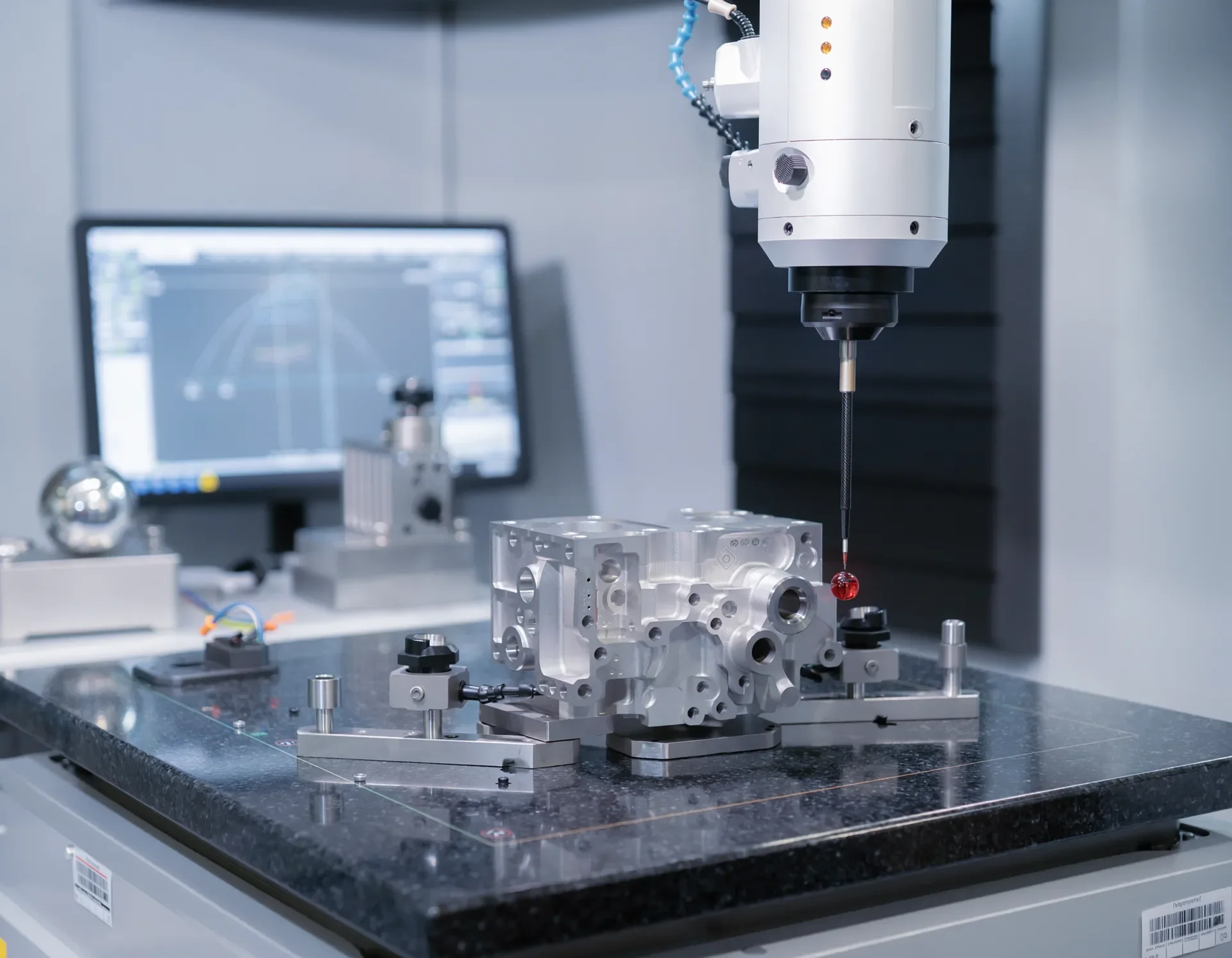

- Final CMM inspection with dimensional reports
- Supplier quality management and development
Materials We Work With
| Material | Grades | Applications | Notes |
|---|---|---|---|
| Aluminum | 6061-T6, 7075-T6, 6082-T6, 5052, etc. | Robotic arms, housings, lightweight structures | Lightweight, anodizable, good machinability |
| Steel | 4140, 8620, 4340 | Gearboxes, shafts, high-strength components | Strong, heat treatable, wear resistant |
| Stainless Steel | 303, 304, 316 | Food-grade robotics, corrosive environments | Corrosion resistant, cleanable |
| Engineering Plastics | PEEK, POM (Delrin), Nylon | Bushings, wear pads | Low friction, self-lubricating, chemical resistant |
| Cast Iron | Ductile iron, Gray iron | Machine bases, vibration-damping components | Damping properties, stable, castable |
| Tool Steel | A2, D2, O1 | Wear parts, cutting tools, precision fixtures | Hard, wear resistant, dimensionally stable |
Applications We Serve
Industrial Robots
- 6-axis robotic arm segments
- Joint housings and bearings
- End-effector tooling plates
- Cable management systems
Collaborative Robots (Cobots)
- Lightweight arm structures
- Safety-rated joint components
- Force/torque sensor mounts
- Control enclosure housings
Automated Assembly Systems
- Pick-and-place mechanisms
- Precision indexing tables
- Part presentation fixtures
- Vision system mounts
Motion Control
- Linear actuator housings
- Ball screw support bearings
- Servo motor mounts
- Belt and pulley systems
AGV/AMR (Mobile Robots)
- Wheel and drive components
- Chassis and frame structures
- Battery mounting systems
- Sensor integration brackets

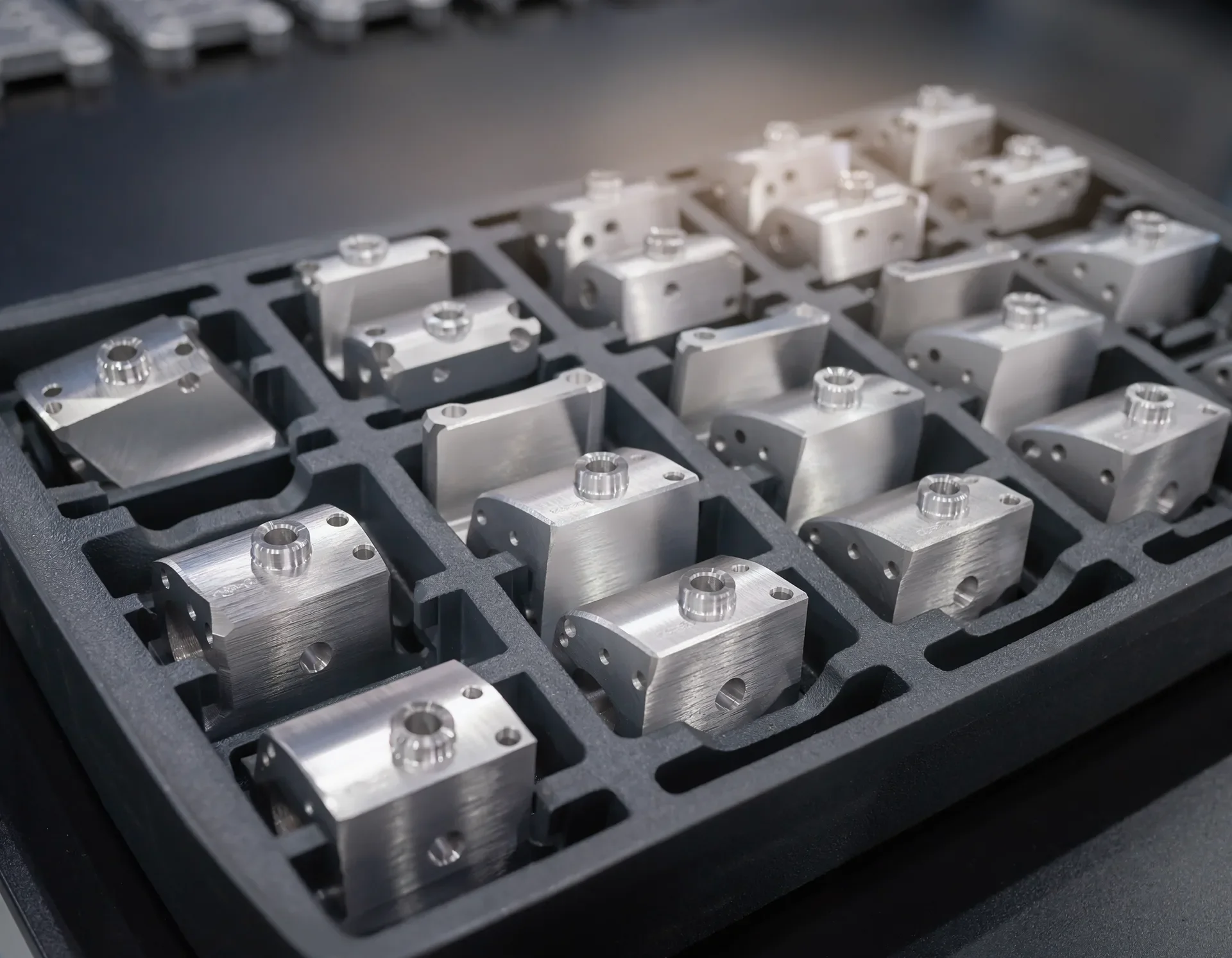

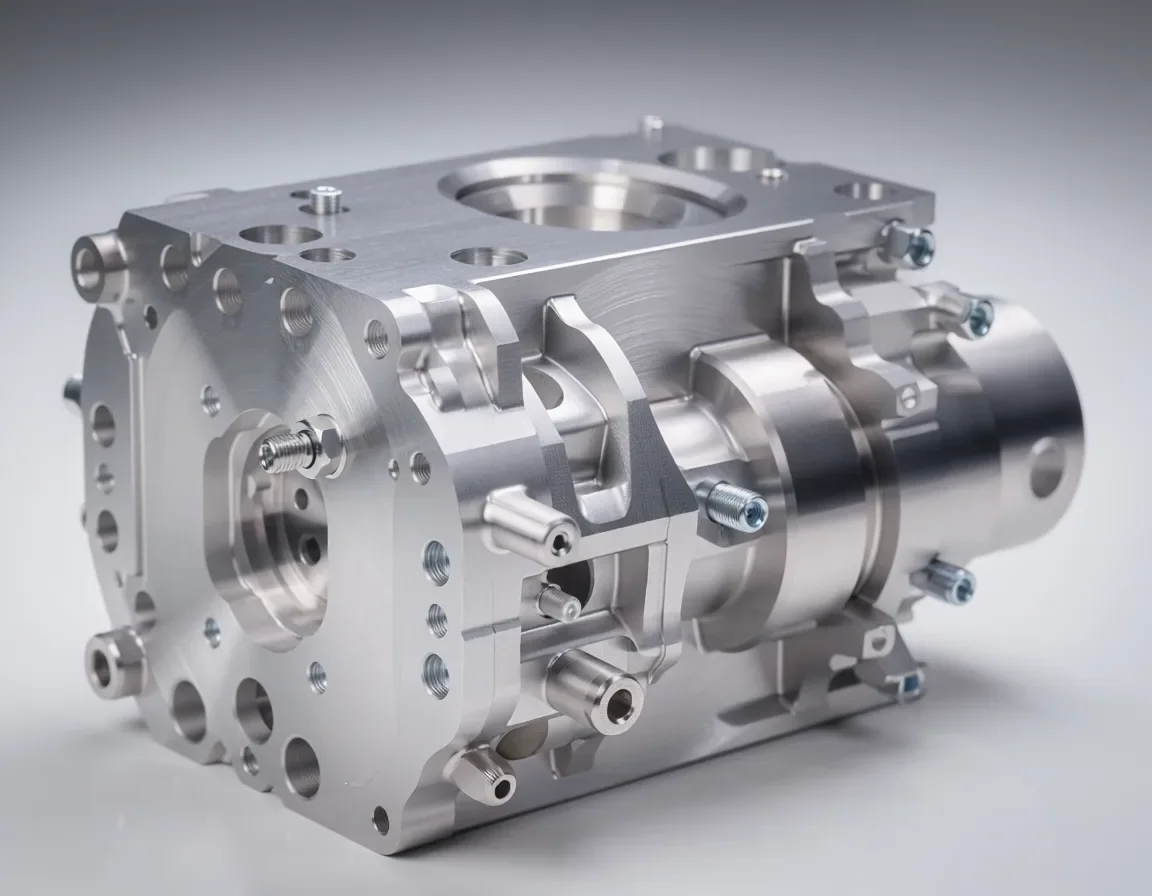

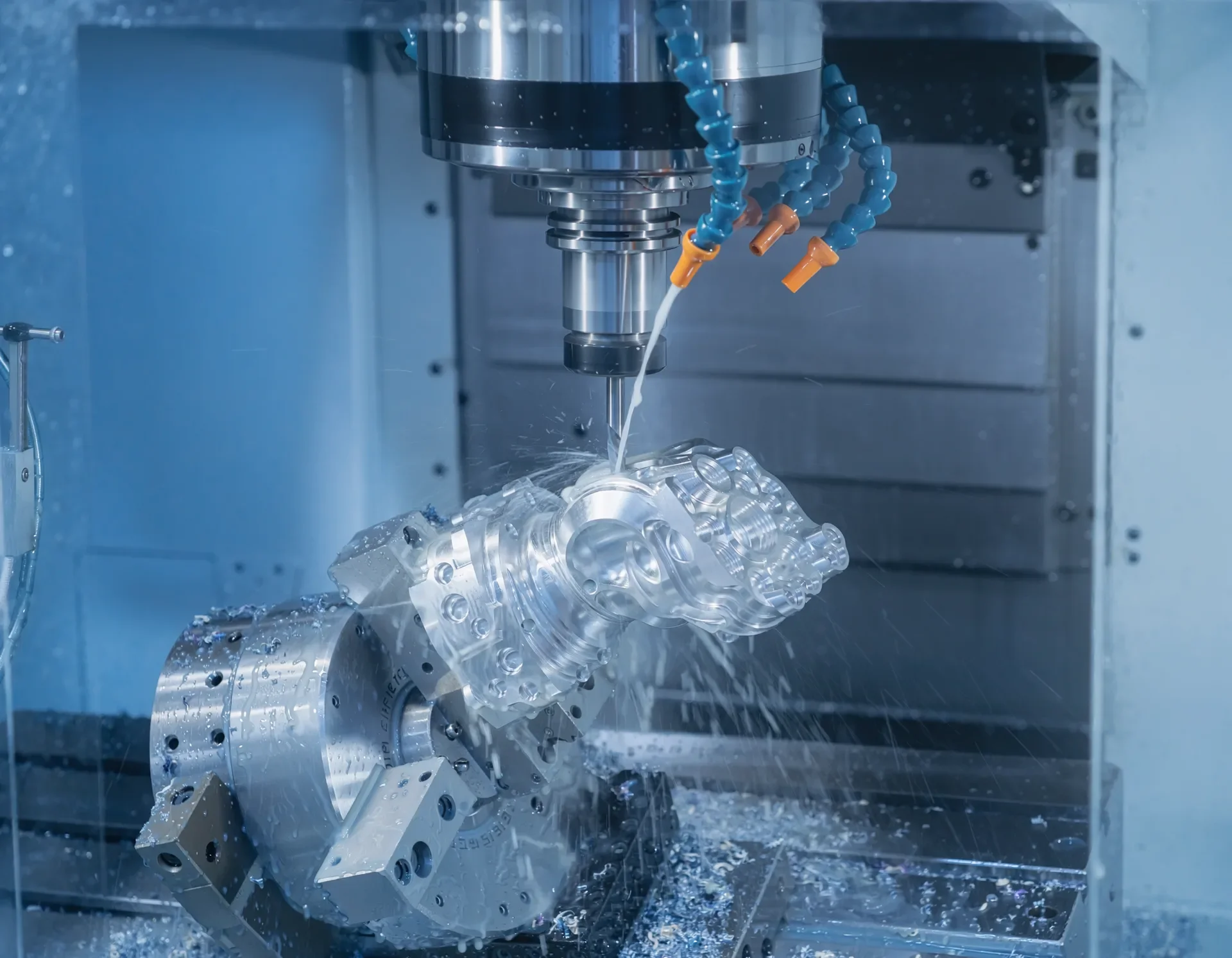

Project Gallery
Why Choose PiPrecision
- High-Volume Excellence: Proven track record at 50,000+ units/month with consistent quality. Our processes scale with your success.
- Zero-Defect Manufacturing: SPC, poka-yoke, and automated inspection ensure every part meets spec. Your assembly lines stay running.
- Design for Manufacturing Support: Our engineers help optimize designs for cost, quality, and manufacturability before cutting metal.
- Just-in-Time Delivery: We understand that automation lines cannot wait. Reliable 2-week lead times with expedite options.
- Multi-Material Expertise: From lightweight aluminum to wear-resistant steel to engineered plastics—we machine it all with precision.
Automation & Robotics Solutions
Get a customized quote for your automation & robotics project.
Request QuoteLead Times
| Prototype | 2 weeks |
| Production | Confirmed after RFQ review |
| Expedite | 1 week |
